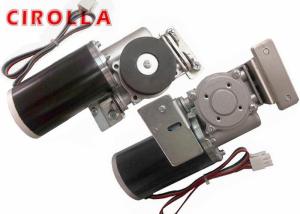

DC 24V Automatic Sliding Induction Door Elevator Door Motor
Motor functions and features
1, we adopt brushless DC technology, service life of the brushless DC motor is longer than the brush motor, and it can be with better reliability.
2, small volume, strong power, powerful working force
3, ultra-quiet sound design, low noise, small vibration, we adopt the automatic lubrication technology.
4, it is made with high-strength aluminum alloy material, strong and durable.
5, it can work with the bearing metal alloy wheel driving belt, and with good quality, stability and high applicability.
6, fully sealed structure, durable, no leaking, we adopt the rubber band to protect screws, which makes it to be with anti-pressure and weight-bearing.
7, it can work with internal security protection circuit device, even if the automatic door opens and closes frequently, it also can run with long-term no-trouble.
Description:
1. CE SGS Certificate
2. 2 years warranty
3. Weight of door leaf:150kg/leaf
4. Power:80-250V Build-in Broadband voltage 50-60HZ
5. Ultra silent
Standard Configuration
1. Motor device
2. Main controller
3. Power
4. Tension wheel device
5. Tooth device
6. Gear belt
7. Stopper
8. Aluminium track
9. Hanger device
Multiple Optional Access
Five bit program switch
Remote control handle
Electric lock
UPS battery
Safety photocell sensor
Access control system
Technical Specification
| Rang of the Door | Single-leaf | Double-leaf |
| Clear door opening | 900-2800mm | 900-2800mm |
| Door leaf max weight | 200kg | 150kg x 2 |
| Height of track rail | 125mm |
| Width of track rail | 156mm |
| Power Supply | AC (AC220±10%), 50-60 Hz |
| Opening Speed | 0.7m/s (adjustable) |
| Closing Speed | 0.7m/s (adjustable) |
| Power consumption | 70W |
| Hold-open time | 0-9s (adjustable) |
| Ambient temperature | -20+50°C |
| Relative humidity(condensate) | 5%-85% |
| Electric fuse | 6.3A |
| Accessorial voltage | AC24V,640mA |
| Power supply | 80VAC-15% - 260VAC+10% |
Motor datas:
| Type | Brushless |
| Voltage | 24VDC |
| Power | 75W |
| No-load speed | 150rpm |
| On-load speed | 120rpm |
| Noise level | ≤50dB |
| Protection class | IP44 |
| Gear Ratio | 1:15 |
| Weight | 2.5kg |
| Lifetime | 3million cycles,10years |
| Application | Sliding Glass door |
Constructure:
Product details:
Production line:
Packing details:
