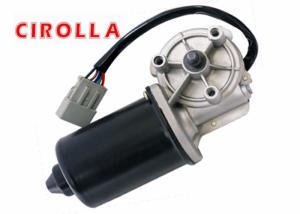

Water Proof Permanent Magnet DC Motor12V / 24VDC High Efficiency

Name: Water Proof Permanent Magnet DC Motor12V 24VDC High Efficiency
Brand: CIROLLA
Price: 1 USD

Brand Name : CIROLLA

Model Number : 7007

Certification : CE/CCC/ SGS

Place of Origin : Zhejiang, China

MOQ : 500PCS

Price : Negotiation

Payment Terms : T/T,L/C, Western Union

Supply Ability : 50,000pcs/month

Delivery Time : 25-30days

Packaging Details : Standard,10pcs/carton, weight 1.5kg

Type : Worm gear DC Motor

Voltage&Power : 12/24VDC,40W

Construction : Permanent Magnet

Structure and Working Principle : Brushed

Gear material : Nylon

Application : Universal, Industrial, Household Appliances, machine power system

Operating Speed : High Speed

Contact Now

Water Proof Permanent Magnet DC Motor12V / 24VDC High Efficiency

Description:

Permanent Magnet Brushed DC (PMDC) motors are the most common BDC motors found in the world.These motors use permanent magnets to produce the stator field. PMDC motors are generally used in applications involving fractional horsepower because it is more cost effective to use permanent magnets than wound stators.

Applications:

Permanent Magnet DC Motors are used in applications where high power, low weight and small dimensions are required such as various small kitchen appliances and power tools. They can operate in different positions. Shaft and mounting provision can be adapted to customer’s requirements.

Specifications:

Type	Brush
Voltage	12VDC
Power	40W
No load Speed	80rpm
No load Current	0.6A
On load Speed	65rpm
On load Current	4.2A
Stall torque	16Nm
Gear material	Dupont 100P
Protection class	IP44
Weight	1.5kg
